125 2000 YZ125, Water Pump Seals (+Pictures)

[Honda]

Coolant started dripping out of my weep hole, no problem, ordered the seals and gaskets necessary, but now i'm confused?

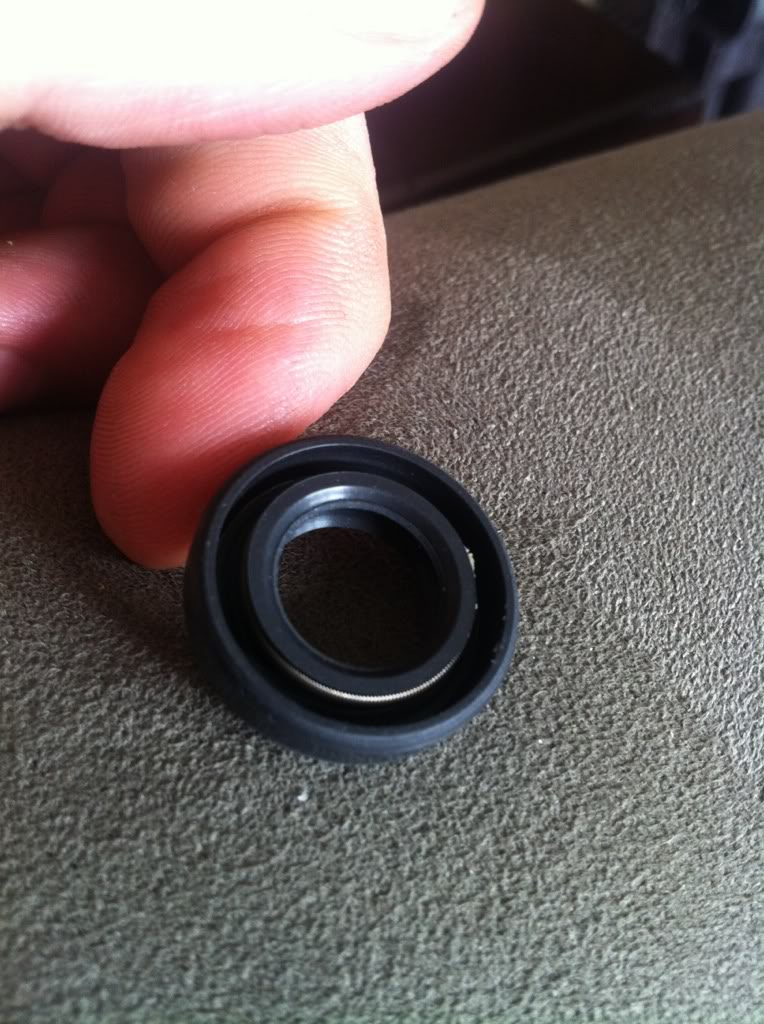

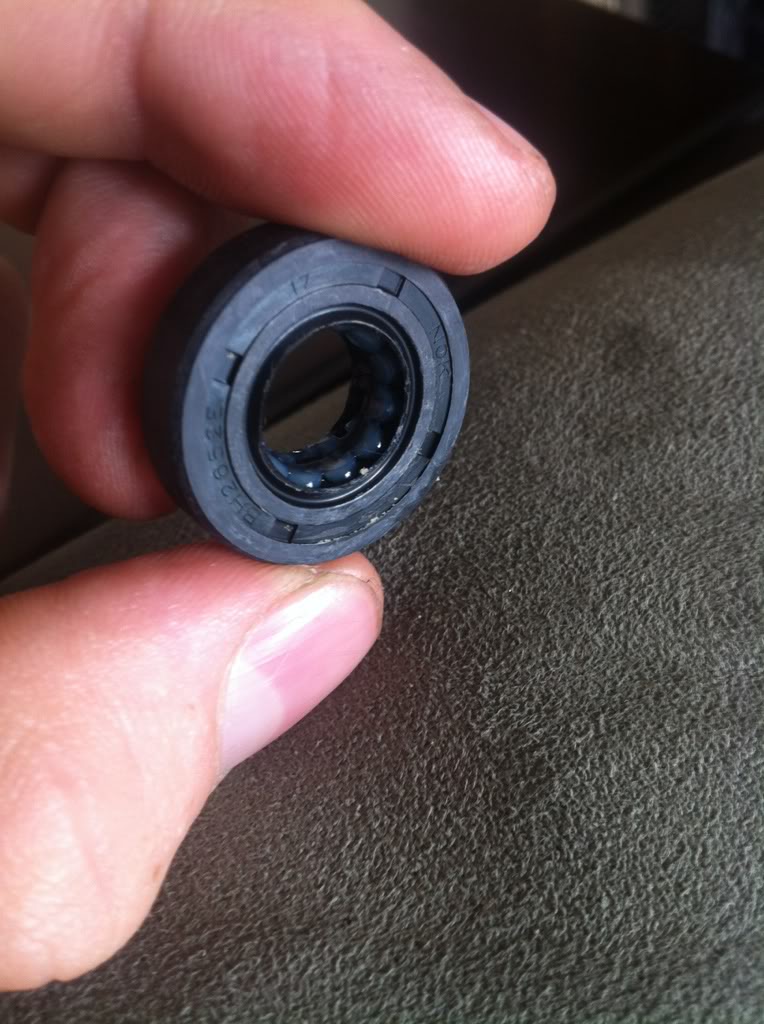

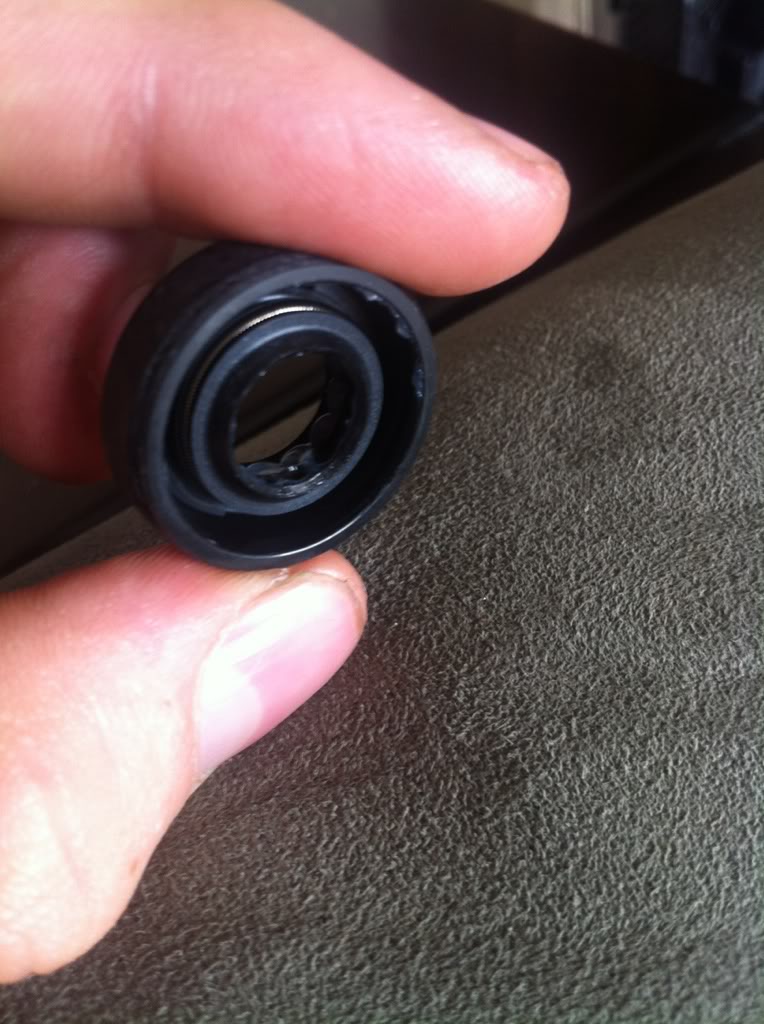

Which way do the seals go into the case, they look like this

And the outer side seal came pre-greased, I won't argue with Yamaha for that

So, which way do they face? I figured the side with the little spring would face inwards, while the side with the lettering would face towards the liquids? I tried a clymer exploded view, but that didn't help.



[jackson409]

from the looks of the parts diagram they go spring side out in the case



[YZALLDAY]

im not any help but i thought i would point out that i just got a 2000 yz 125 too lol



[yamadogyz]

im not any help but i thought i would point out that i just got a 2000 yz 125 too lol

^This guy... I vote for his post



[YZALLDAY]

^This guy... I vote for his post

did i just win an internet?



[yamadogyz]

did i just win an internet?

Better, you one on the internet, feel as special as you please



[Emily]

Can we see pictures of the bike too



[Nighthawk016]

flat sides towards each other. The springs seal the liquid in, so you need a spring side out for the crank case oil and a spring side out for the coolant. I have to do this on my bike too.



[Honda]

Thanks NH and Jackson, just went and popped the seals/bearings in.

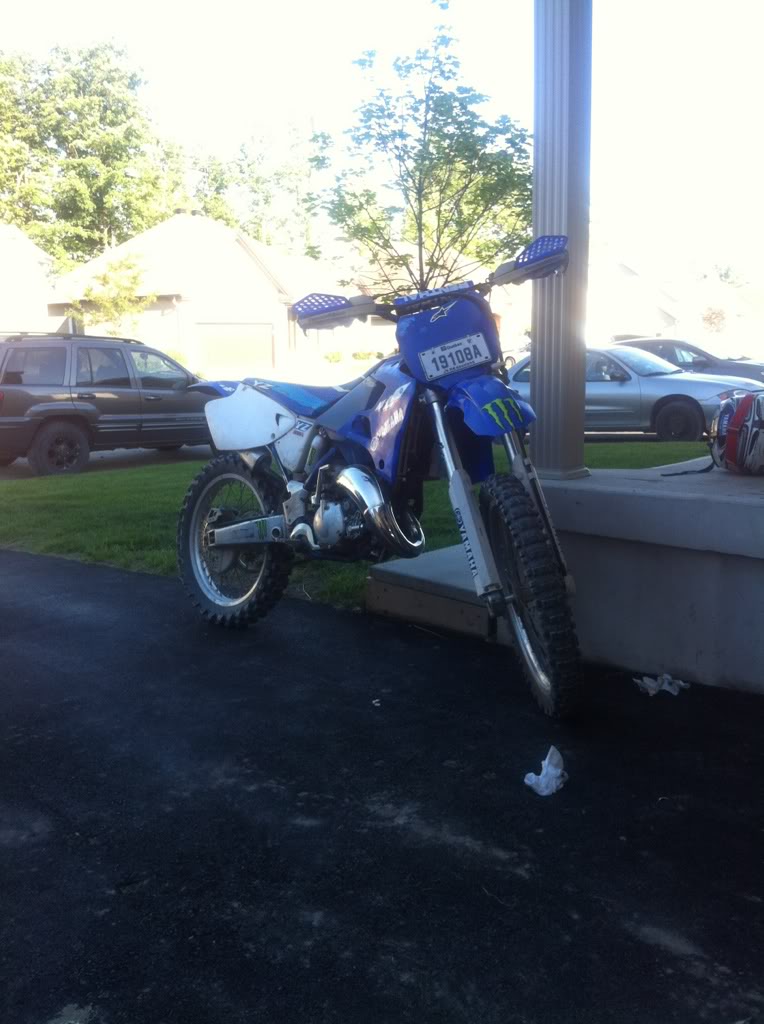

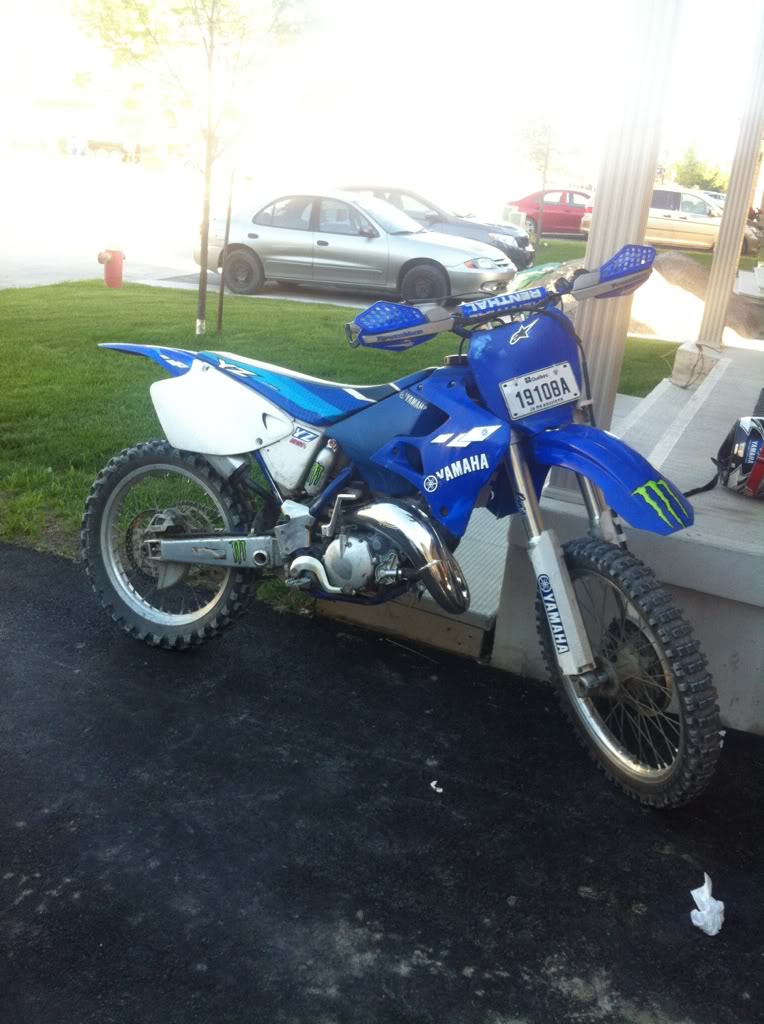

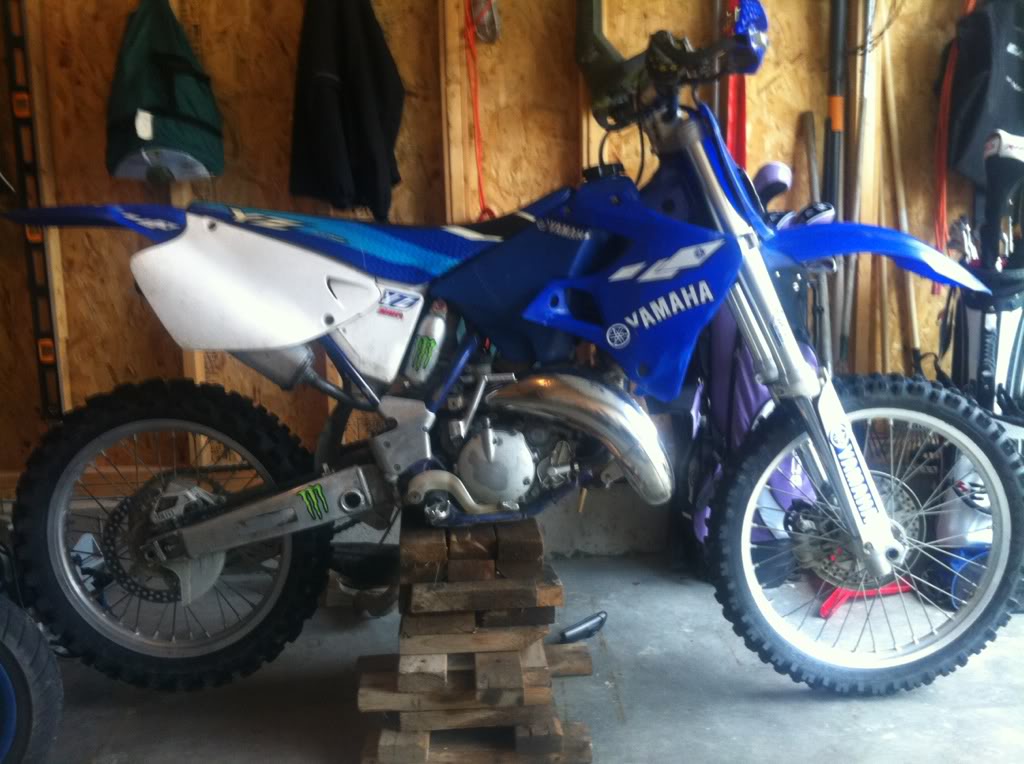

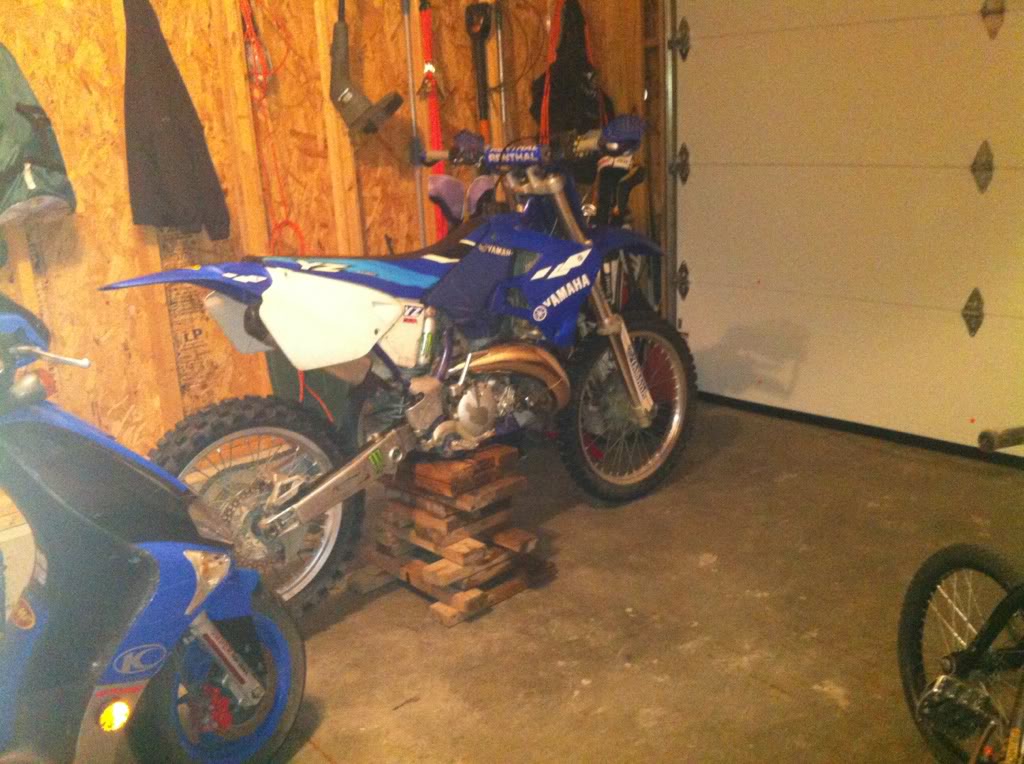

Haha sure Emily!!

Look at my feet, notice the major farmers tan from wearing boots



[Honda]



[Nighthawk016]

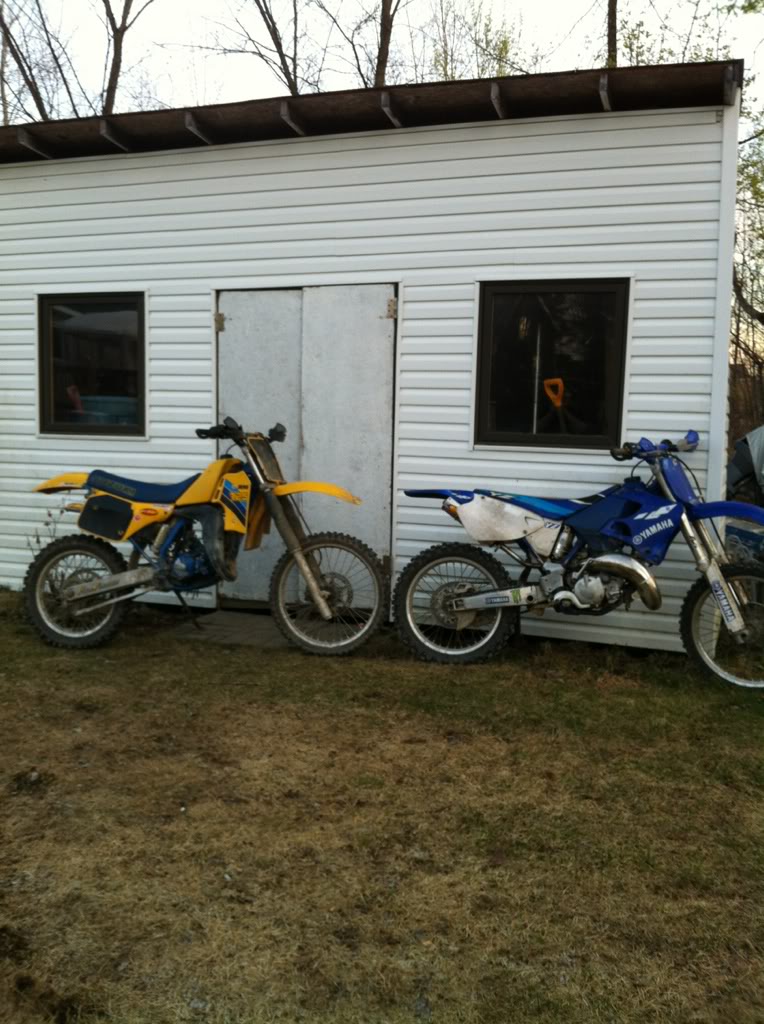

are you sure thats an 86 rm125? it looks alot like an 87 thats for sure



[Honda]

100% sure, checked the vin's and model #, it's the trail version of the 86 rm



[Emily]

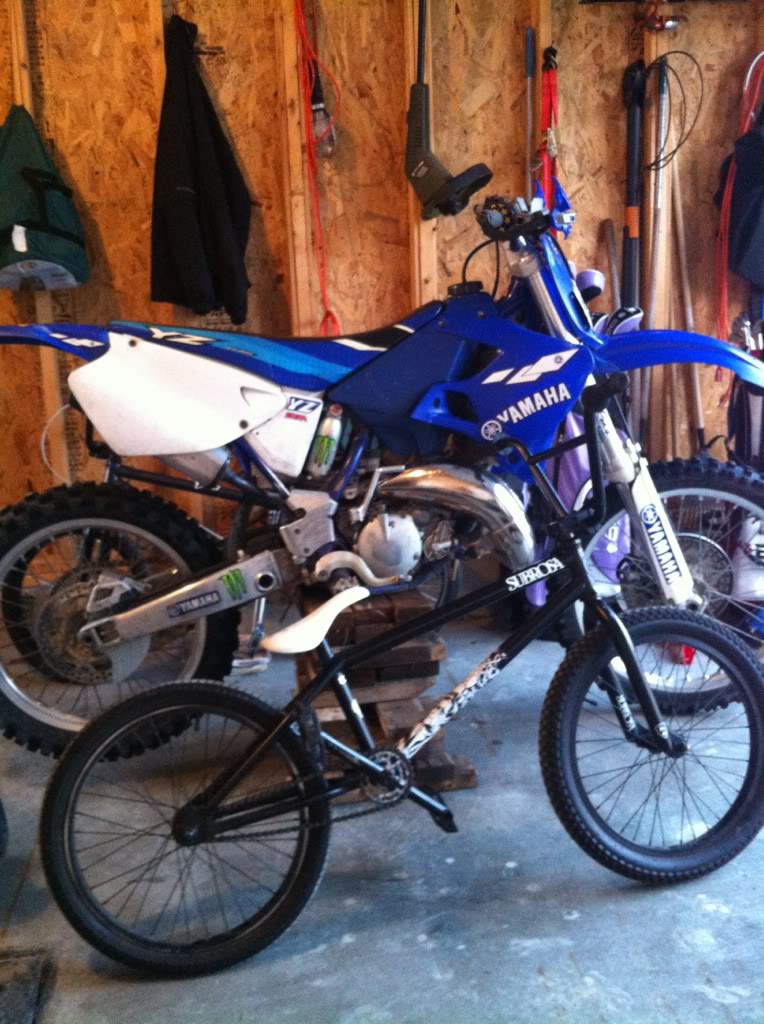

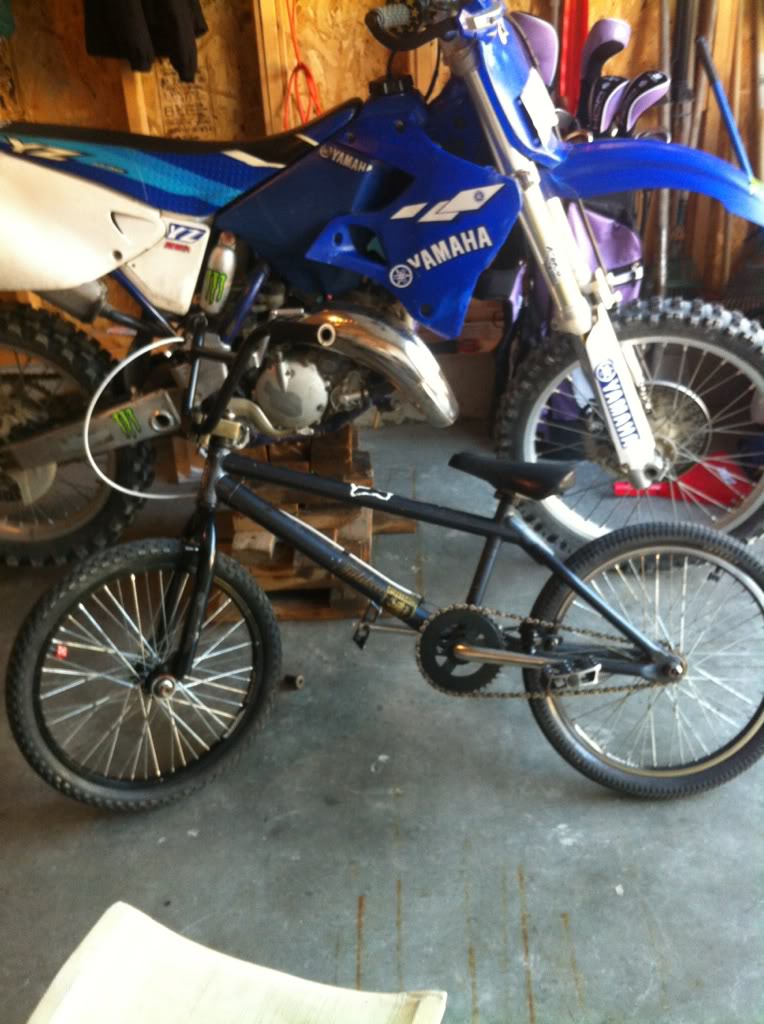

You sure do deliver nice pics, nice bikes, nice bicycles.



[yamadogyz]

Someone busted out the whole album



[Honda]

Na Ray, I pulled a Paul (if you catch me)
