The Metal Fabrication and Builds Thread

LeadHead

LeadHead

Post pictures and show off some of your work, ideas, etc.

Welding, bending, cutting, :blah:


Here's one project I'm doing. I'm building a barstool racer. I had a nice Miller welding stool that I was going to use...but unfortunately, someone got too close to it with a plasma cutter - sparks at + Hot as Hell degrees Farenheit - cardboard box full of bearings, parts, and that expensive stool = :banghead:

Anyways. The frame is just about done. Here's the general layout. Untacked.



And here she is coming along. Motor mounted and tacked up. Dont mind that plate just sitting there..


I tell you what though, it'd be nice if we could get our CNC plasma working right!

bobkyle2

bobkyle2

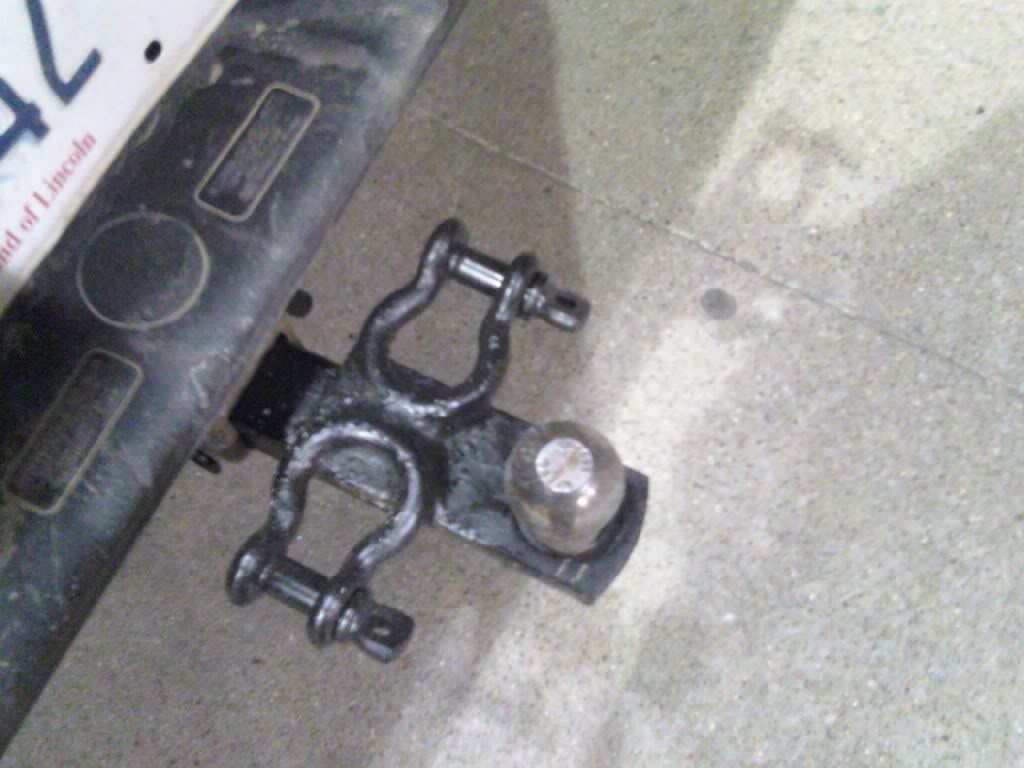

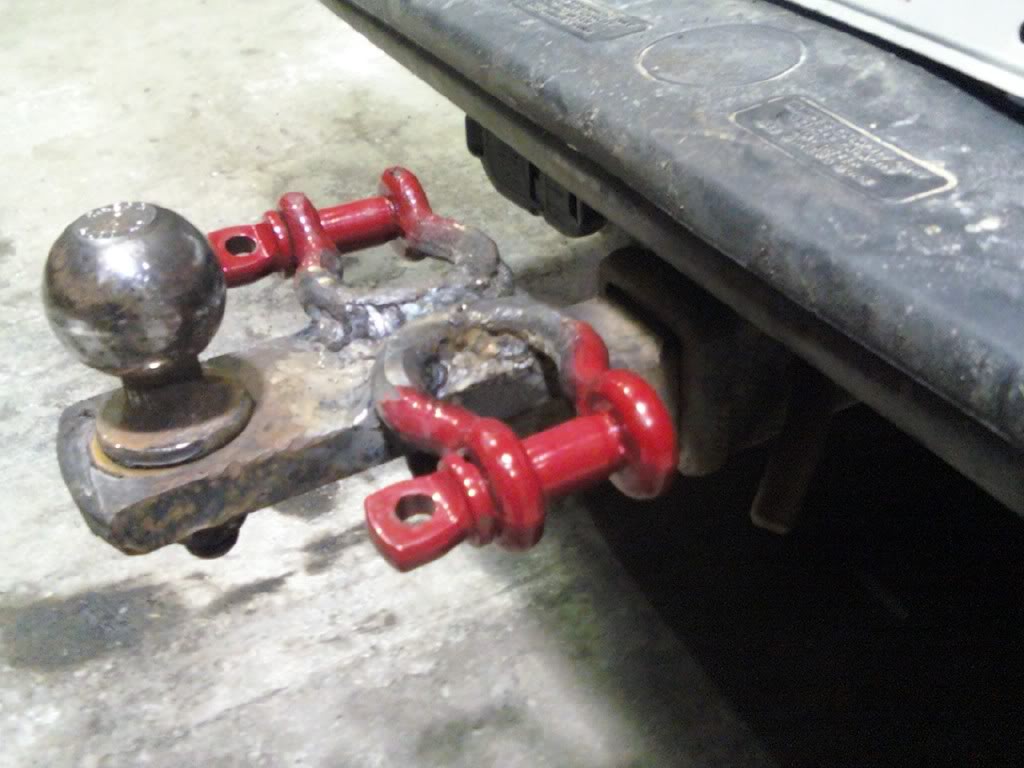

Last thing metal wise i actually made... Was this jewel



bobkyle2

bobkyle2

I made it to hook chains while i'm wenching cars onto a trailer on one of the trailers i have... Makes the job go so much smoother...

Also makes a decent step... I think i cleaned the metal off the rins... But not the hitch :smirk: Then kentucky-powdercoated it :wink:

They are tough as nails.. Can loop a chain around and in and out and 9kinds of hell.. So when you are pulling someone out it just ain't around the ball.

jackson409

jackson409

bobkyle2:
I made it to hook chains while i'm wenching cars onto a trailer on one of the trailers i have... Makes the job go so much smoother...

Also makes a decent step... I think i cleaned the metal off the rins... But not the hitch :smirk: Then kentucky-powdercoated it :wink:

They are tough as nails.. Can loop a chain around and in and out and 9kinds of hell.. So when you are pulling someone out it just ain't around the ball.
Click to expand...

WTF is that :foul:

rezrider

rezrider

bobkyle2:
I made it to hook chains while i'm wenching cars onto a trailer on one of the trailers i have... Makes the job go so much smoother...

Also makes a decent step... I think i cleaned the metal off the rins... But not the hitch :smirk: Then kentucky-powdercoated it :wink:

They are tough as nails.. Can loop a chain around and in and out and 9kinds of hell.. So when you are pulling someone out it just ain't around the ball.
Click to expand...
jackson409:
WTF is that :foul:
Click to expand...

I'm thinking spray painted it! :prof:.... :noidea:

Mojavekid18

Mojavekid18

Lets see, MX stand, Kawie Logo, Inn table with a waterfall in it, Misc sleeves on my bike, and a bunch of others
Theres a couple of the stand
Don't have pictures of the rest
I am also currently making a downhill drift trike and a hitch for the ranger :D


Attachments

  • securedownload.jpg
    9 KB · Views: 21
  • IMGA0620.JPG
    118.8 KB · Views: 19
  • IMGA0621.JPG
    111.2 KB · Views: 24
  • IMGA0622.JPG
    113.3 KB · Views: 20
Mojavekid18

Mojavekid18

Jhutchh:
could you make me a stand? that think looks sweet :thumb: how much would you want? you should drill a hole for draining oil.. and they sell rubber (different styles too) at lowes, home depot, etc..
Click to expand...

Yeah i thought about producing a couple of them and making a hole for the oil. I didn't know they sold rubber at lowes like that, my shop teacher made one for his too (we ride together :smirk:) and he just cut up a floor mat. I used some rubber undercoating on the top of mine. It would be like 40$ bucks if i were to make them though

Jhutchh

Jhutchh

Mojavekid18:
Yeah i thought about producing a couple of them and making a hole for the oil. I didn't know they sold rubber at lowes like that, my shop teacher made one for his too (we ride together :smirk:) and he just cut up a floor mat. I used some rubber undercoating on the top of mine. It would be like 40$ bucks if i were to make them though
Click to expand...
could you maKe it by crowcanyon?? and how much for one for a 50cc? Theres a bbr mini stand at west hills Honda in moon.. ill grab a couple measurements and you can get me a price on that :thumb: I think both of my brothers might want one too....
