100 04' KX100 Rebuild

Discussion in 'Kawasaki' started by D8K, Feb 19, 2011.

  1. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan

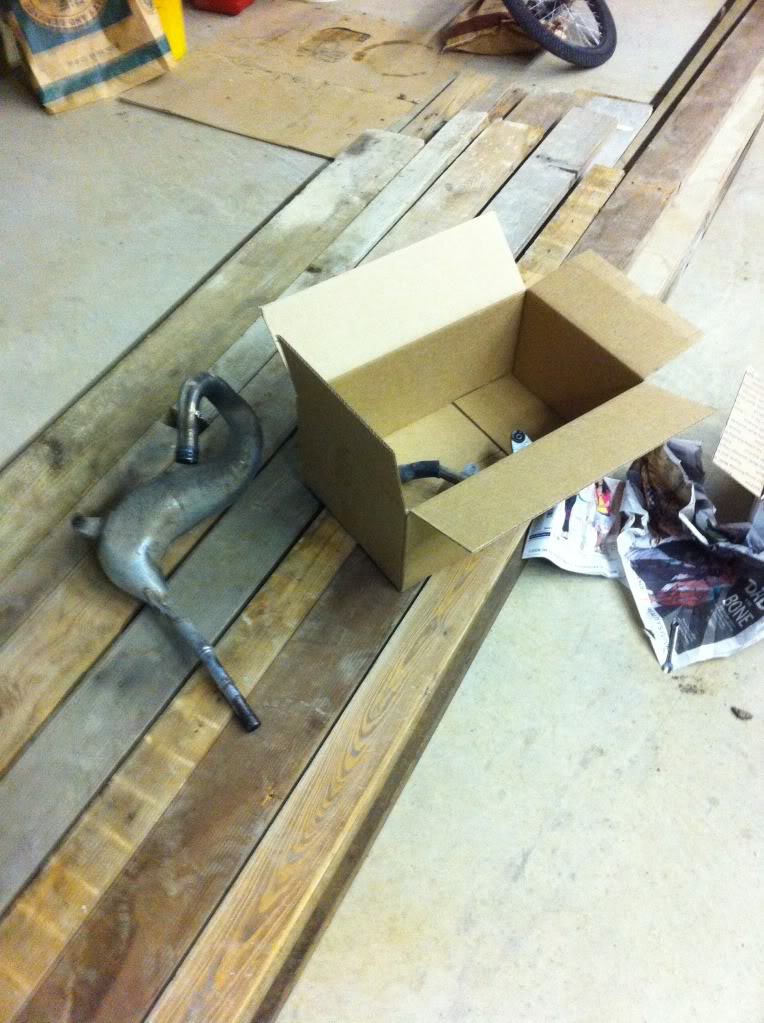

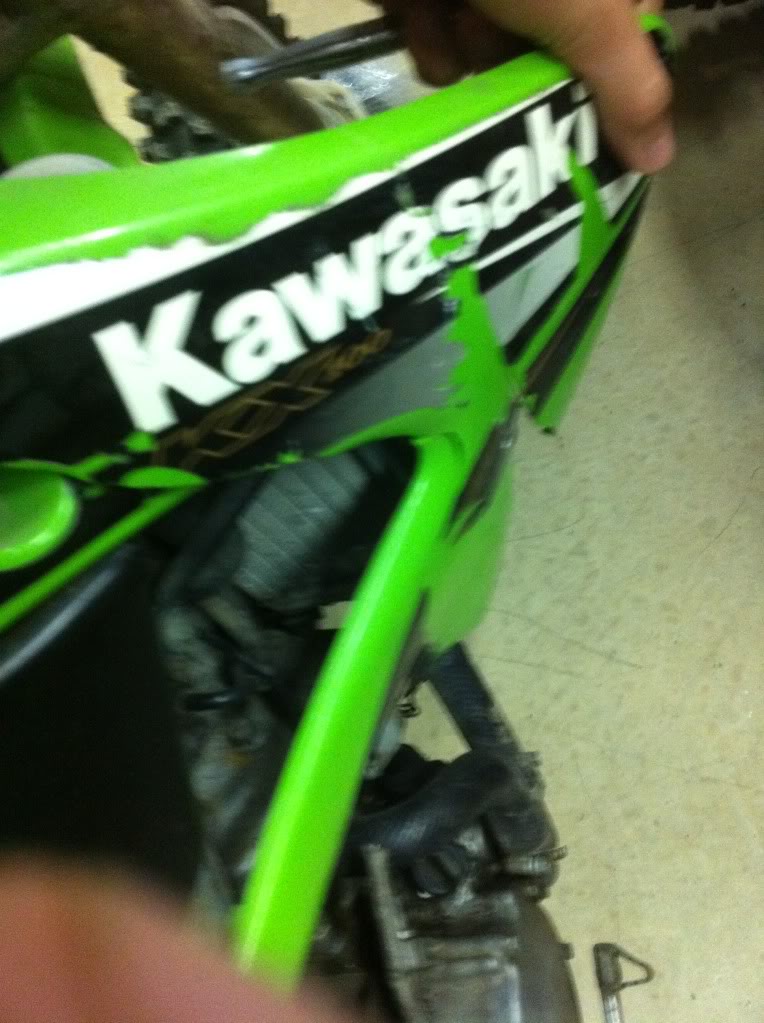

    I found an 04' KX100 in my creek, the motor wasn't locked up so I decided to fix it. I got the motor to run for a little bit after I bought an older carburetor from a 1990's KX100. Since the motor had low compression I decided to ATLEAST buy some OEM rings and piston for the bike, but once I took off the cylinder I immediately saw abnormal wear on the cylinder wall above the exhaust port. The chasis is in overall good shape besides a bent muffler and broke plastics on the right side of the bike due to being thrown off a bridge and into my creek :smirk:

    I'm praying that I can keep this rebuild under $600 so I can make a little money. Also, I have some parts from me old KX85 so that should help a BUNCH. SO here's the parts list...

    Replate- $200 (plus shipping for one way)

    OEM piston & rings- $74.37

    Polisport plastics kit or a kit that comes with the restyled UFO fenders (Polisport because they come with front number plates so I don't have to waste $30 on one.) - $106.30

    ProTaper pillow top grips- $12

    And some graphics I already have picked out from ebay that come with an N-Style seat cover- $85 w/free shipping.

    Supension seals and all bearings are good :banana: and I already started packing them w/waterproof BelRay grease. :thumb:

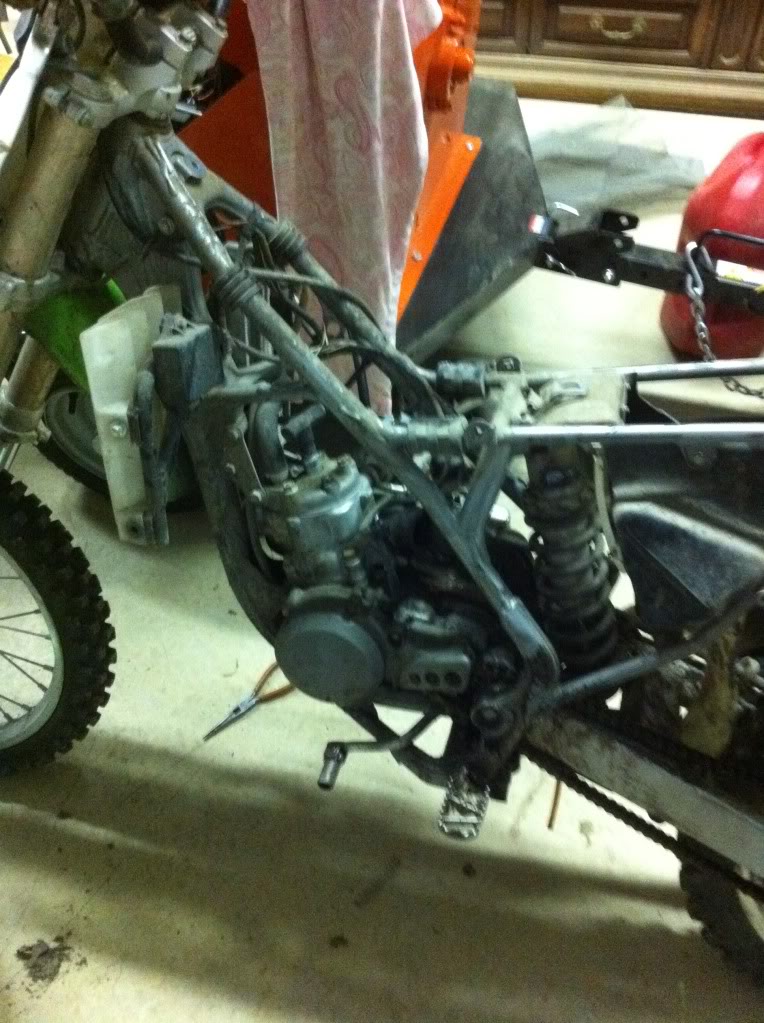

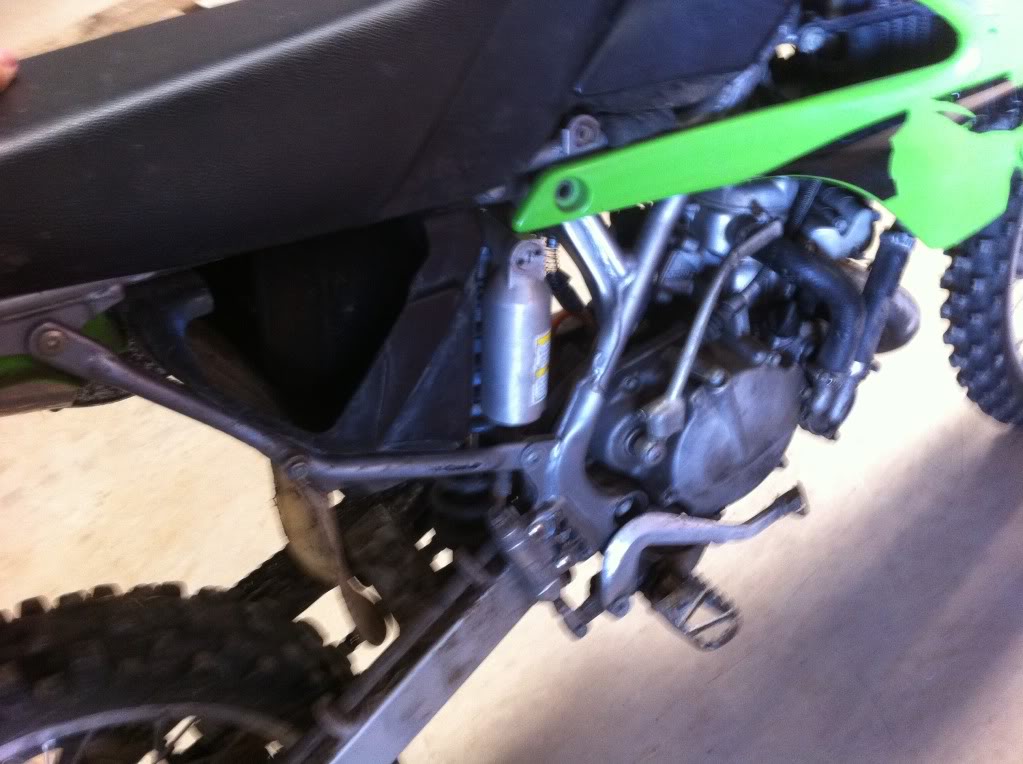

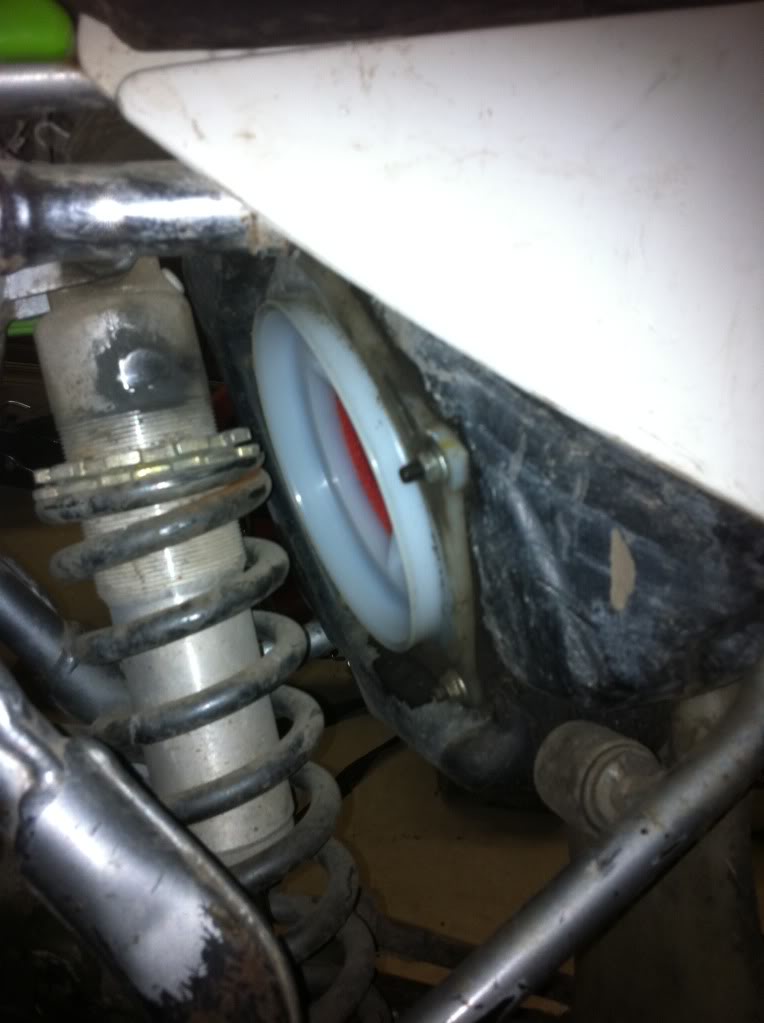

    So here's some pics after about a one hour tear down (Man I forgot how easy little kawi's are to work on.)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Parts bought:

    OEM cylinder- $275 w/free shipping from ebay

    OEM plastics w/2010 graphics- $104.95 w/free shipping

    OEM piston, rings, and cir-clips- $70.32 w/free shipping

    Tusk brake lever- $5.99 w/free shipping

    ProTaper pillow top grips- $12.99 w/free shipping

    Motion Pro throttle cable- $14.99 w/free shipping

    I should receive the parts on 2-25-11

    :thumb:

    All I need now is a 16" rear

  2. 140rider

    140rider

    Posts:
    587
    Name:
    Nunya
    Nice! I wish I had nice bikes in my creek that weren't stolen:cry:

  3. James

    James Photo Guy Staff Member

    Posts:
    11,618
    Location:
    Wherever I am
    Name:
    James
    :thumb: Looks like a fun project, keep us updated.

  4. CDA

    CDA

    Posts:
    9,612
    Location:
    Depends on the day
    Name:
    CDA
    Sponsor Ad

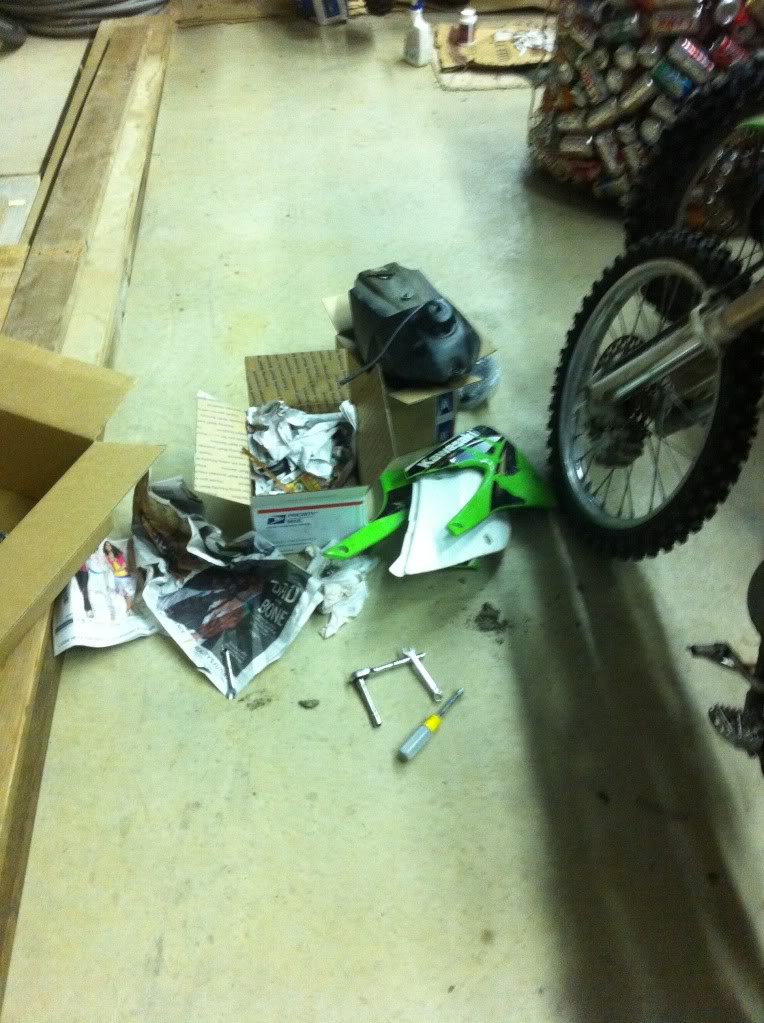

    Sweet project:thumb: If you run out of money, just cash in that big bag of cans behind you..

  5. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan
    Well I ended up buying a NOS cylinder for CHEAP!!! :thumb: I going to keep an eye on the rings so i'm not worried about the wear problems I've heard about on the stock cylinders. I'll be posting editing the first post to show new progress so the thread is easier for people to read etc.... :blah:

    Oh and it seems like I can't a socket thin enough to remove the perch due to the ASV rotating clamp arggghhhhhh

    which graphics???? these http://cgi.ebay.com/ebaymotors/KX85..._Accessories&hash=item2a0d5a61ac#ht_500wt_956 or these http://cgi.ebay.com/ebaymotors/MONS..._Accessories&hash=item4152c6f086#ht_500wt_956

  6. suzuki_dude

    suzuki_dude

    Posts:
    494
    Location:
    West Union, WV
    Name:
    Zach
    i vote the 5th dragons

  7. josmoloco

    josmoloco

    Posts:
    3,807
    Location:
    Washington State
    Name:
    Brandyn
  8. josmoloco

    josmoloco

    Posts:
    3,807
    Location:
    Washington State
    Name:
    Brandyn
  9. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan
    Well I just bought some OEM plastics that had the 2010 OEM graphics on it... I should finish the bike this weekend total cost: $484.25 Not bad in my opinion.... :thinking: I guess some 'cooler' graphics may get put on it IF i have a hard time selling in a couple months....

    CHECK TOP POST FOR NEW PICTURES AND PARTS LIST UPDATE

  10. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan
  11. Emily

    Emily

    Posts:
    3,320
    Location:
    Florida
    Name:
    Dante
    I'm jealous.

  12. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan

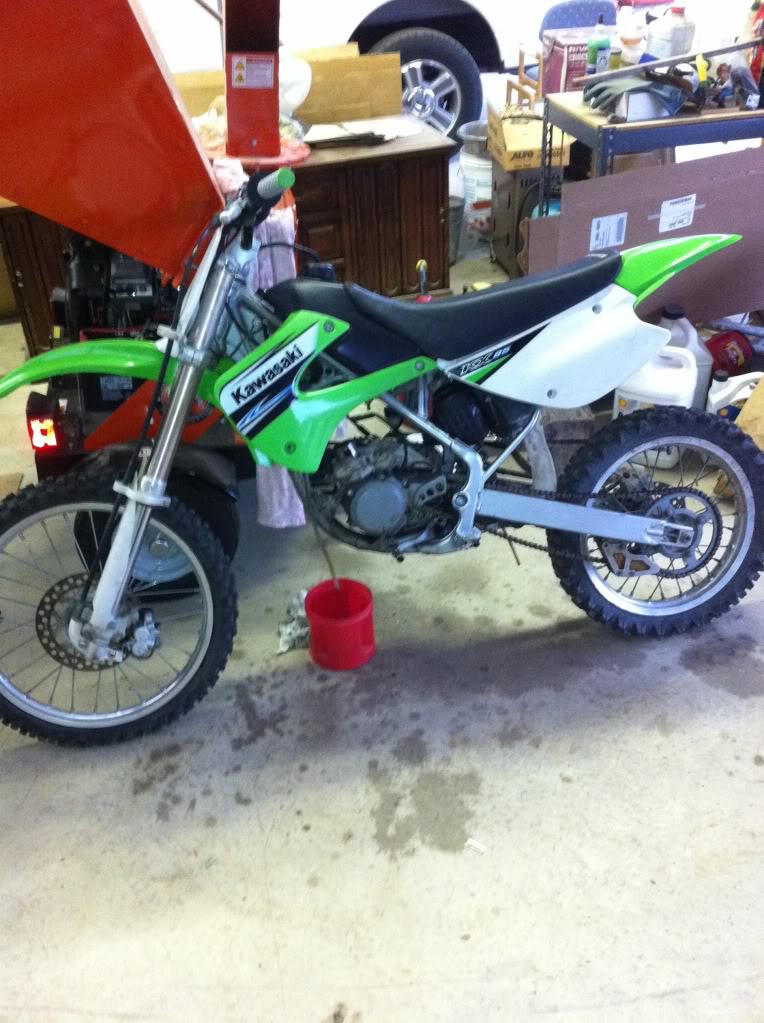

    Well I got all my parts on except my new cylinder since I haven't recieved it...

    [​IMG]

  13. D8K

    D8K

    Posts:
    423
    Location:
    Stillwater, Oklahoma
    Name:
    Dylan
    whoops I double posted...

  14. yamadogyz

    yamadogyz

    Posts:
    3,852
    Name:
    RJ
    AWESOME! You gotta move that shifter up a little though, well, thats what it looks like :thumb:

  15. TWS

    TWS

    Posts:
    894
    Sponsor Ad
    man those 100's are neat little bikes.we had a 07.wish I didn't get rid of it.keep up the good work.
